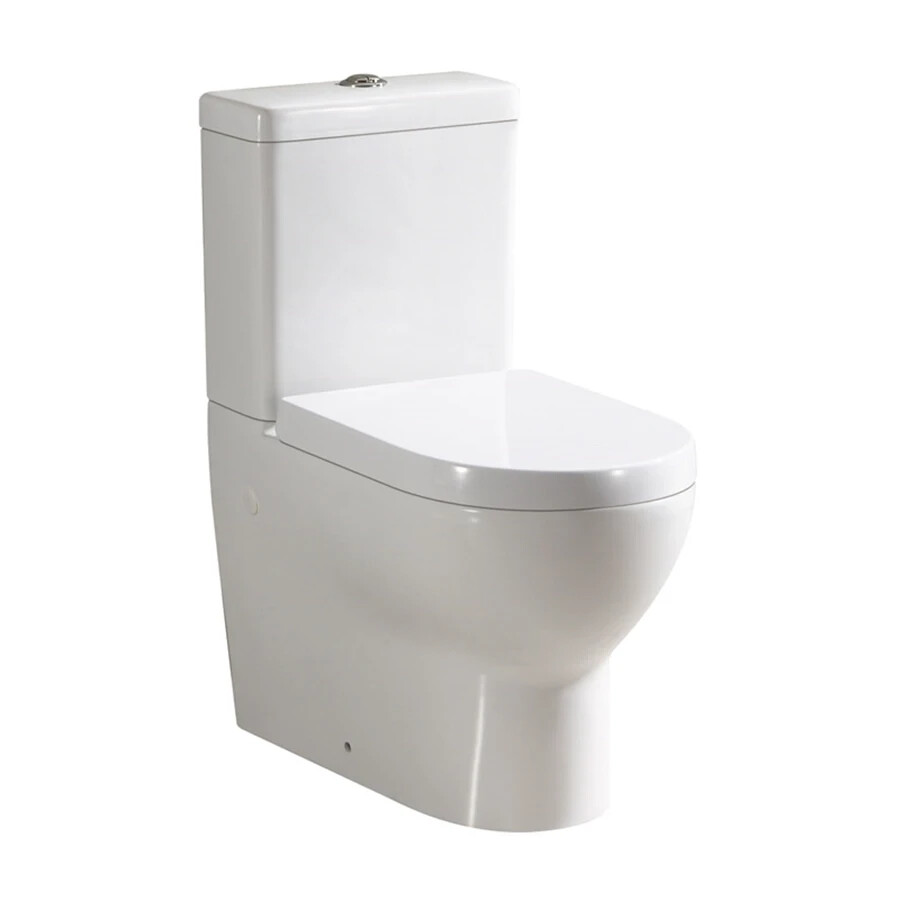

KDK014 Mercury Back to Wall Box Rim Toilet Suite S-Trap 60-165mm, P-Trap 180mm

Original price was: $211.00.Current price is: $190.00. inc. GST

10 in stock

SKU: KDK014 Categories: ,

Description

Toilet suites collection

Explore Range
Other Toilets
Shop Now →



Push button & hinge cover

Customise Hardware
Push button & Hinge cover
Colour Options →





✔ Free Pick Up Available
📍 Auburn NSW 2144
📍 Villawood NSW 2163
📍 Dandenong South VIC 3175
📍 Rocklea QLD 4106



Mercury · Box Rim Collection
Mercury KDK014
Box Rim Toilet Suite | Dual Flush 4.5/3L
Gloss White · Pan MC014P/KDK014P + Cistern MC014C/KDK014C (Back/Left/Right bottom inlet) · UF Standard Seat SC804
✓ WaterMark Certified (Lic. 1156)
✓ WELS 4-Star · Reg L04908
✓ AS1172.1 Compliant
✓ 15Y Warranty (ceramic suite)



Purchase Mercury KDK014 — Direct eBay Link
$190
NSW
$287
VIC
$279
QLD
*Complete suite: MC014P/KDK014P pan, MC014C/KDK014C cistern, UF seat SC804 + Trap-60 supplied (60-165mm). Free local pickup within 40km of Villawood NSW. Gloss white finish only.



📦 Complete Suite — Box Contents
Box Rim Pan (MC014P / KDK014P)
665×375×810mm · Smooth box rim flush technology · Gloss white finish · Modern, easy-clean design.
MC014C/KDK014C Multi-Inlet Cistern
Back / Left / Right bottom inlet flexible connection · 375×175×490mm · 4.5/3L dual flush · modern push button PB-R.
UF Standard Seat SC804 + Trap-60
UF seat with soft-close, bracket K05. Supplied S-Trap 60 (60-165mm adjustment). Optional traps available.
⚙️ Optional upgrades: Trap-100 (100-225mm) · JT43 (150-260mm) · P-Trap 180mm.



Mercury KDK014 Technical Specifications — Toilet Pan & Cistern
Component / Spec Details
Model Mercury Box Rim — KDK014 (Gloss White) · Pan MC014P/KDK014P + Cistern MC014C/KDK014C
Pan Dimensions (L×W×H) 665 × 375 × 810 mm
Cistern Dimensions (L×W×H) 375 × 175 × 490 mm · Multi-inlet: Back / Left / Right bottom connection
Flush type / Volume Dual flush 4.5L (full) / 3L (half) · WELS 4-Star L04908 (avg 3.5L) · WaterMark Licence 1156
Compliance AS1172.1 · WaterMark Certified
Supplied S-Trap Trap-60 (60–165mm adjustable) — standard
Optional Traps Trap-100 (100-225mm) · JT43 (150-260mm) · P-Trap 180mm
Weight & Volume (Pan) G.W 39 kg · Volume 0.14 m³
Weight & Volume (Cistern) G.W 13.5 kg · Volume 0.03 m³
Seat Details
Item Specification
Supplied Seat UF Standard Seat SC804 · Size: 675×390×505 mm · Bracket K05 · Soft-close
Weight (pan + seat combined) 39 kg (gross)

💧 Mercury KDK014 — Advanced Box Rim Technology
Engineered with box rim flush for superior hygiene and efficient waste removal. Dual flush 4.5/3L saves water without compromising performance. Available in elegant gloss white finish. Optional traps for flexible installation.



✨ Why the Mercury KDK014 Suite?
📦
Box Rim Flush Technology
Powerful rim wash, reduced bacterial buildup, and whisper-quiet operation.
🎨
Timeless Gloss White
Classic, clean finish that suits any bathroom aesthetic – modern or traditional.
🔁
Triple Inlet Cistern
Back, left or right bottom connection – plumber-friendly flexibility for any rough-in.
💧
WELS 4-Star Rated
Uses 3L / 4.5L per flush – save water and reduce environmental impact.



📐 Key Dimensions — Mercury KDK014 Pan & MC014C/KDK014C Cistern
Pan: 665(W) × 375(D) × 810(H) mm
Cistern: 375(W) × 175(D) × 490(H) mm
Rough-in: S-Trap 60 (60-165mm)
✅ Back-to-wall design · Pan Weight 39kg (gross) · Cistern 13.5kg · Soft-close seat included (SC804 / K05)
🛡️ 15 Years Warranty
Ceramic suite (pan + cistern) — structural warranty against manufacturing defects.
UF Seat SC804
2 years parts & labour (seat mechanism) · 15 years ceramic
*Warranty excludes improper installation, damage from misuse, or non-compliant plumbing. Licensed plumber recommended.

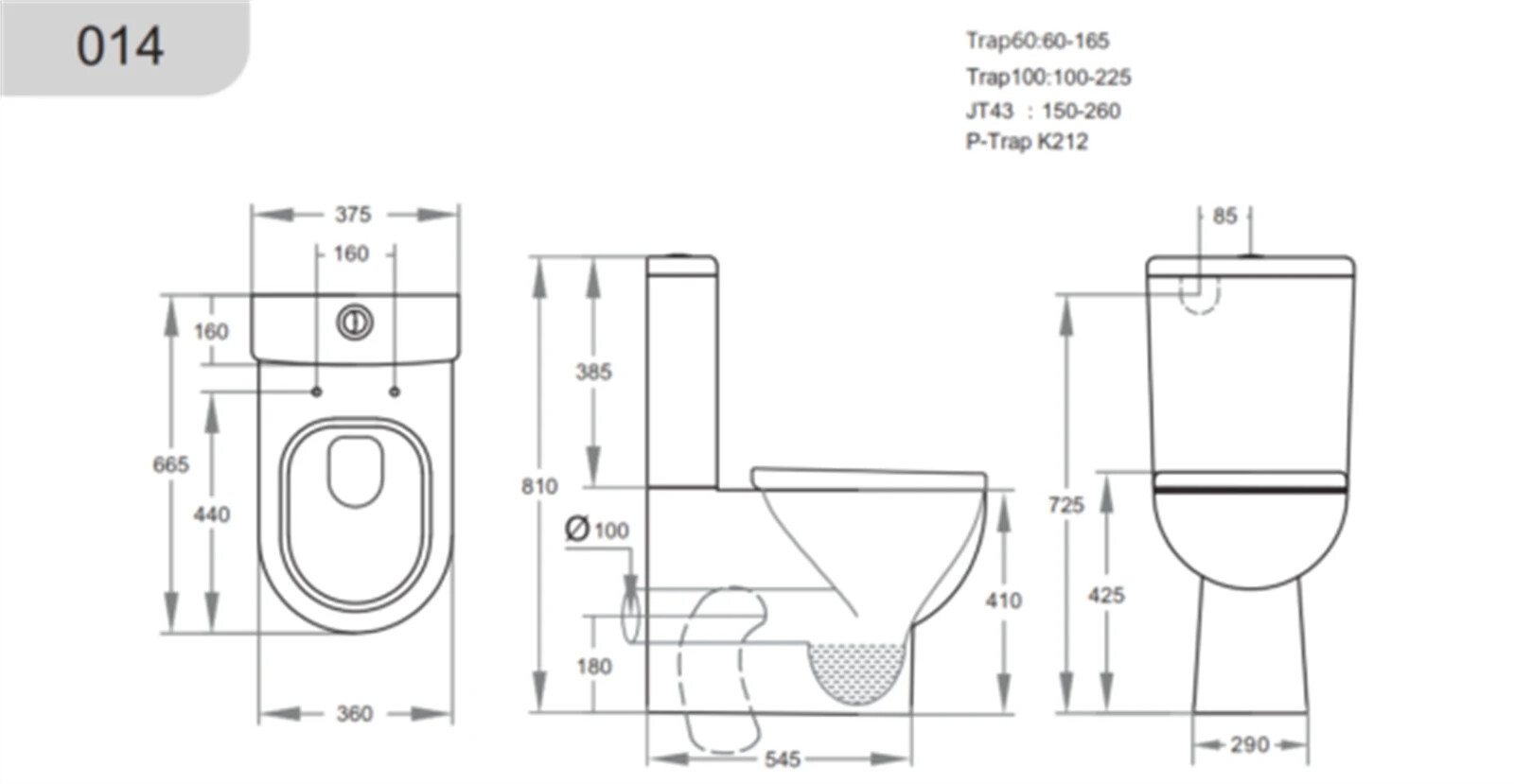

Mercury KDK014 dimensions diagram - box rim toilet

🔁 Return & Refund Policy
7 days return window
20% restocking fee
Returns only accepted in original, unopened packaging. Once installed or packaging opened, no returns/exchanges. Inspect thoroughly before installation. Buyer covers return shipping. No returns accepted after installation.



Mercury KDK014 · Box Rim Pan (MC014P/KDK014P) · Back/Left/Right Bottom Inlet Cistern MC014C/KDK014C · Dual flush 4.5/3L · WaterMark Licence 1156 · WELS 4-Star L04908 · Complies with AS1172.1 · UF Standard Seat SC804 (bracket K05) · Optional Trap-100 (100-225mm), JT43 (150-260mm), P-Trap 180mm · Gloss white finish · Ideal for residential, commercial, and designer bathrooms.
